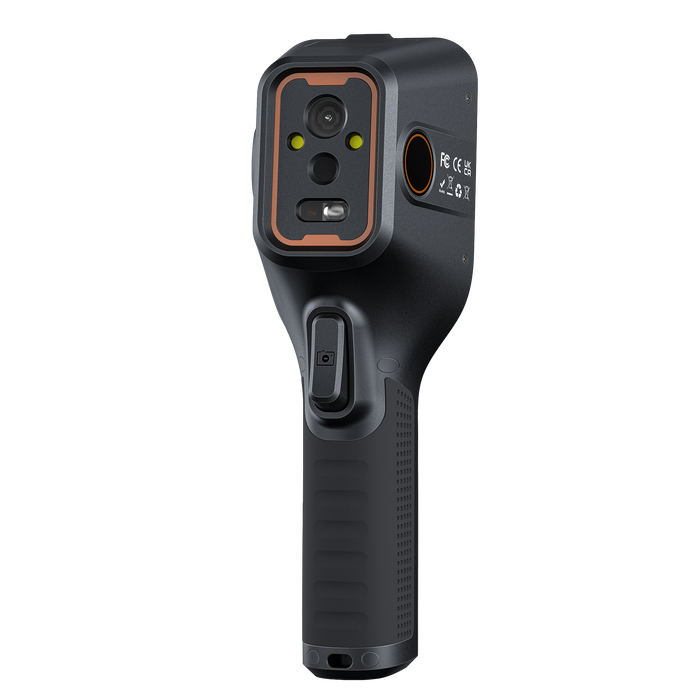

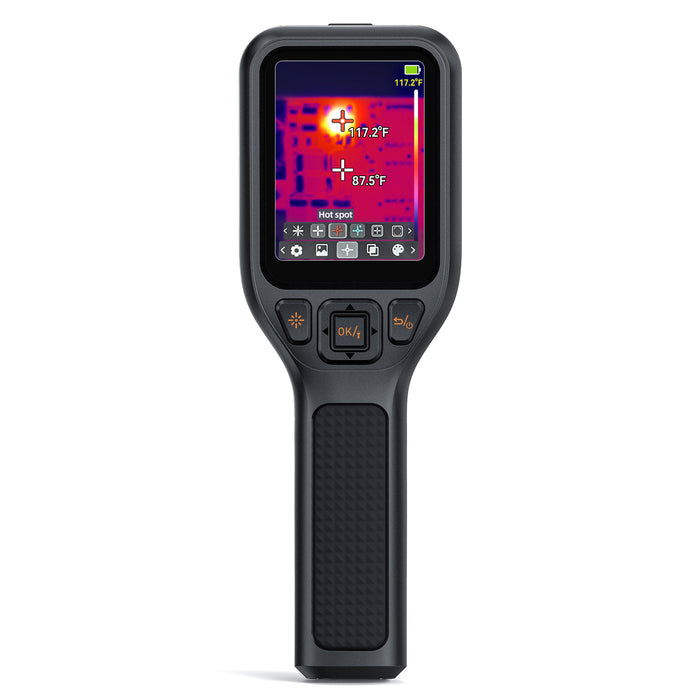

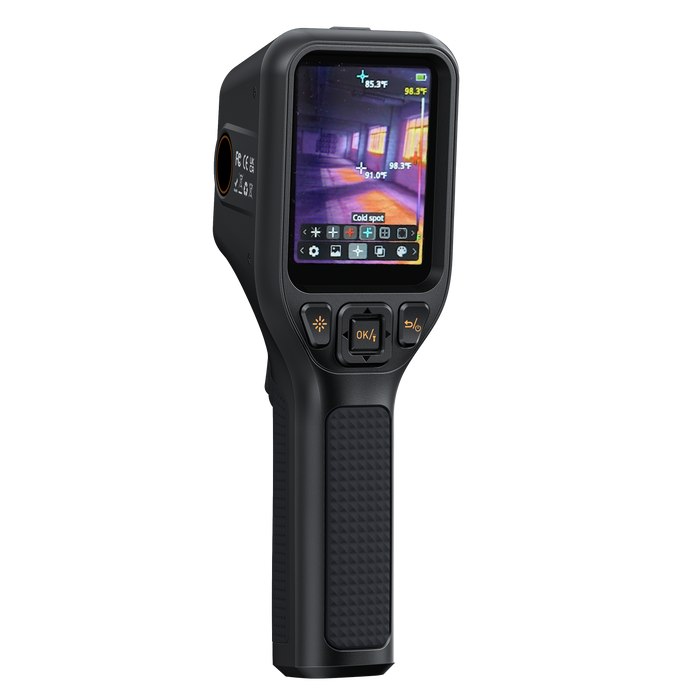

TTM120S/TTM260 Thermal Imaging Camera

Technical Specs

Model Number: TTM120S
Infrared Sensor Resolution: 120x90 pixels
Field of View (FOV): 38°-50°
Pixel Size: 17 um
Spectral Range: 8~14 um
Thermal Sensitivity/NETD: <60 mk
Image Frequency: 25 Hz
Temp. Measurement Range: -4°F to 752â„?(-20°C to 400°C)
Temp. Measurement Accuracy: ±2°C or ±2% of reading
Operating Temperature Range: 14°F to 140°F (-10°C to 60°C)
Storage Temperature Range: -40°F to 185°F (-40°C to 85°C)
LED Flashlight: 2 Watt Cree LEDs
Laser Class:  Class II
Temp. Display:
-Center Point Temperature
-Max. Temperature Tracking (Hot)
-Min. Temperature Tracking (Cold)
Color Palette: Iron / White Hot / Black Hot / Rainbow / Hottest / High Contrast / Glimmer / Lava
Screen Type: 3.2-inch TFT LCD Screen
Screen Resolution: 240x320
Battery Capacity: 2600 mAh Rechargeable Lithium Battery (with APO - Auto Power Off)
Storage Capacity: 8 GB
USB Port: USB Type-C (with protective color to protect against dirt, dust, and water)
Waterproof Rating: IPX2

Model Number: TTM260
Infrared Sensor Resolution: 256x192 pixels
Field of View: 42° - 56°
Pixel Size: 12 um
Spectral Range: 8~14 um
Thermal Sensitivity/NETD: <50 mk
Image Frequency: 25 Hz
Temp. Measurement Range: -4°F to 752â„?(-20°C to 400°C)
Temp. Measurement Accuracy: ±2°C or ±2% of reading
Operating Temperature Range: 14°F to 140°F (-10°C to 60°C)
Storage Temperature Range: -40°F to 185°F (-40°C to 85°C)
Visible Camera Megapixel: 720p
Visible Camera FOV: 55°-83°
LED Flashlight: 2 Watt Cree Leds
Laser Class: Class II
Laser Measurement Range: 1-40 meters
Temperature Display:
-Center Point Temperature
-Max. Temperature Tracking (Hot)
-Min. Temperature Tracking (Cold)
Color Palette: Iron / White Hot / Black Hot / Rainbow / Hottest / High Contrast / Glimmer / Lava
Image Mode (TTM260 only): Thermal / Visible / Outline Fusion / Overlay Fusion / PIP / Fusion ADJ. / Offset ADJ.
Screen Type: 3.2-inch TFT LCD Screen
Screen Resolution: 240x320
Battery Capacity: 2600 mAh Rechargeable Lithium Battery (with APO - Auto Power Off)
Storage Capacity: 8 GB
USB Port: USB Type-C
Waterproof Rating: IP54

What's in the package

1 Thermal Imaging Camera
1 Storage Bag (TTM260 Only)
1 USB Cable (USB Type-A to USB Type-C)
1 User Manual
1 Safety Warning Manual
1 Wrist Strap Lanyard
